Views: 14 Author: Site Editor Publish Time: 2018-11-09 Origin: Site

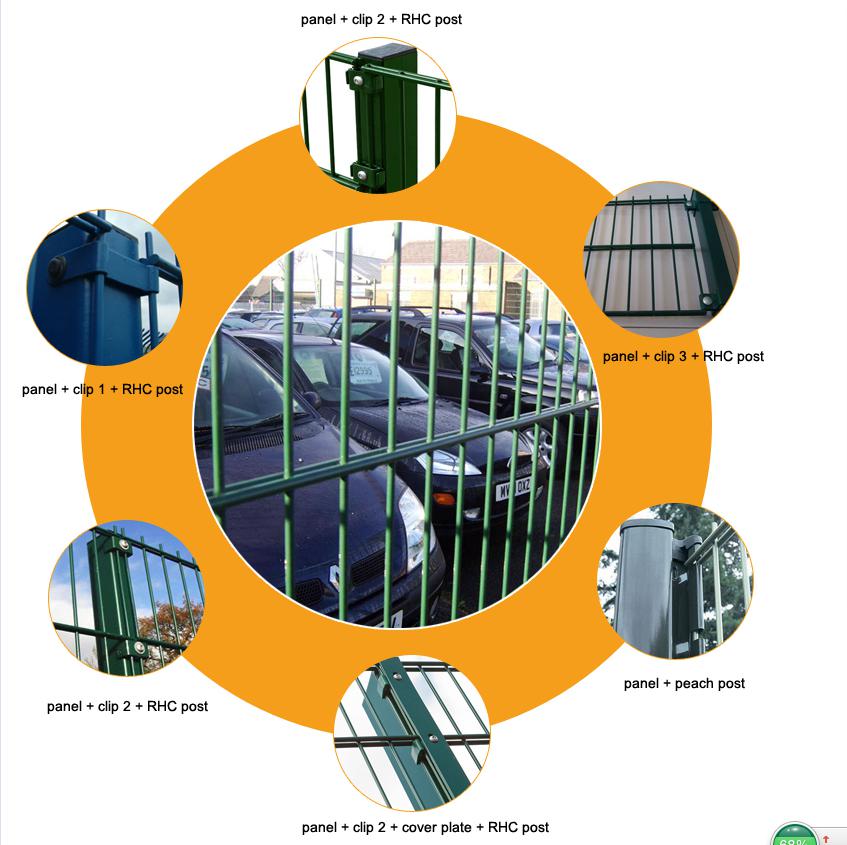

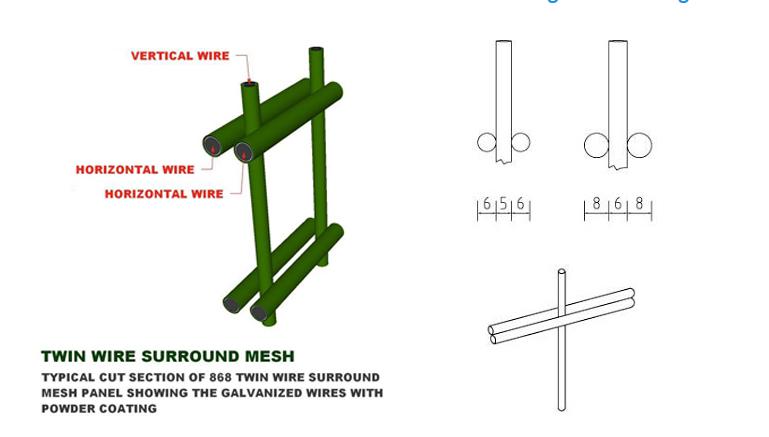

868 Double Wire Mesh Fencing have 2 no. of same dia. wire in cross direction, nip welded 1 wire in line direction, so also called 656 or 868 double wire fence. Matching double wire doors and square post, round post, peach post etc. which form a whole completely fence systems with high protection.
High quality galvanized welded double wire mesh fence preventing people from cutting through or climbing and Use a double wire manufacturing process, double wire mesh fencing system offers protection
Available in a wide variety of RAL colors and over 20 different heights, welded wire mesh panel can be tailored for every installation.

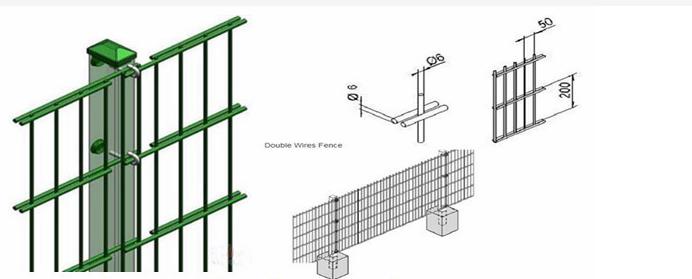

868 Double Welded Mesh Fencing Specification:
Material: | HDG galvanized wire, steel wire |
Wire Dia. | 6*2+5 ; 8*2+6 |
Mesh Size: | 50x200mm, 55x200mm, 50x100mm |
Height: | 0.63-2.43m |
Length: | 2-3m |
Matching Post: | 60*60mm; 80*80mm; 100*100mm |
Surface Treatment: | Powder coated ; pvc coating; HDG galvanized after welded |
Zinc Coating: | 40-300g/m2 ; >300g/m2 |
Usually the mesh fence panel have tolerance when the producing
Height and Length: <1000mm +/-5.0mm ; 1000-2000mm +/-10mm ; 2000-3000mm +/-15mm ; > 3000mm +/-20mm
Wire Dia. : 0.05-0.10mm tolerance

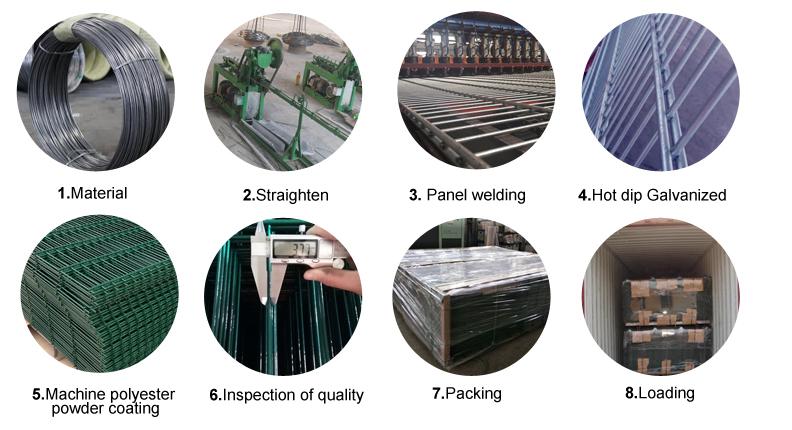

High Quality Galvanized Welded Double Wire Mesh Fence Producing Process:
